Contact Graph Scheduling

Contact Graph Scheduling (CGS) is a method of assigning pick-up and delivery schedules in delay- and disruption tolerant networks. The principle application is that of assigning image capture and delivery in intermittently connected satellite networks, in which both tasks and image data are routed through the network via ground-space, space-space and space-ground contact opportunities. This code was originally developed by Christopher Lowe and has been adapted by Beth Probert, both of the Applied Space Technology Laboratory at the University of Strathclyde.

Related publications

"Delay-tolerant network approach to satellite pickup and delivery scheduling", Christopher Lowe, Ruaridh Clark, Ciara McGrath, Malcolm Macdonald, Dec 2023, Ad Hoc Networks, DOI: https://doi.org/10.1016/j.adhoc.2023.103289A

Codebase

This codebase includes a Discrete Event Simulation (DES) implementation of a Space Network, in which requests for location-specific images are submitted to a central scheduler. This scheduler implements CGS to define tasks that are issue throughout the constellation, such that task assignees receive the request in good time to execute the image acquisition, and use Contact Graph Routing to deliver data to the ground in the minimum time possible.

Discrete Event Simulation

The DES is established using the simpy library, whereby image requests are submitted based on the invocation of a generator function that yields Request objects according to some probability distribution. The submission of Request objects triggers the CGS procedure on the Scheduler node, which, if successful, adds a Task object to the task table. This task table is then distributed throughout the network.

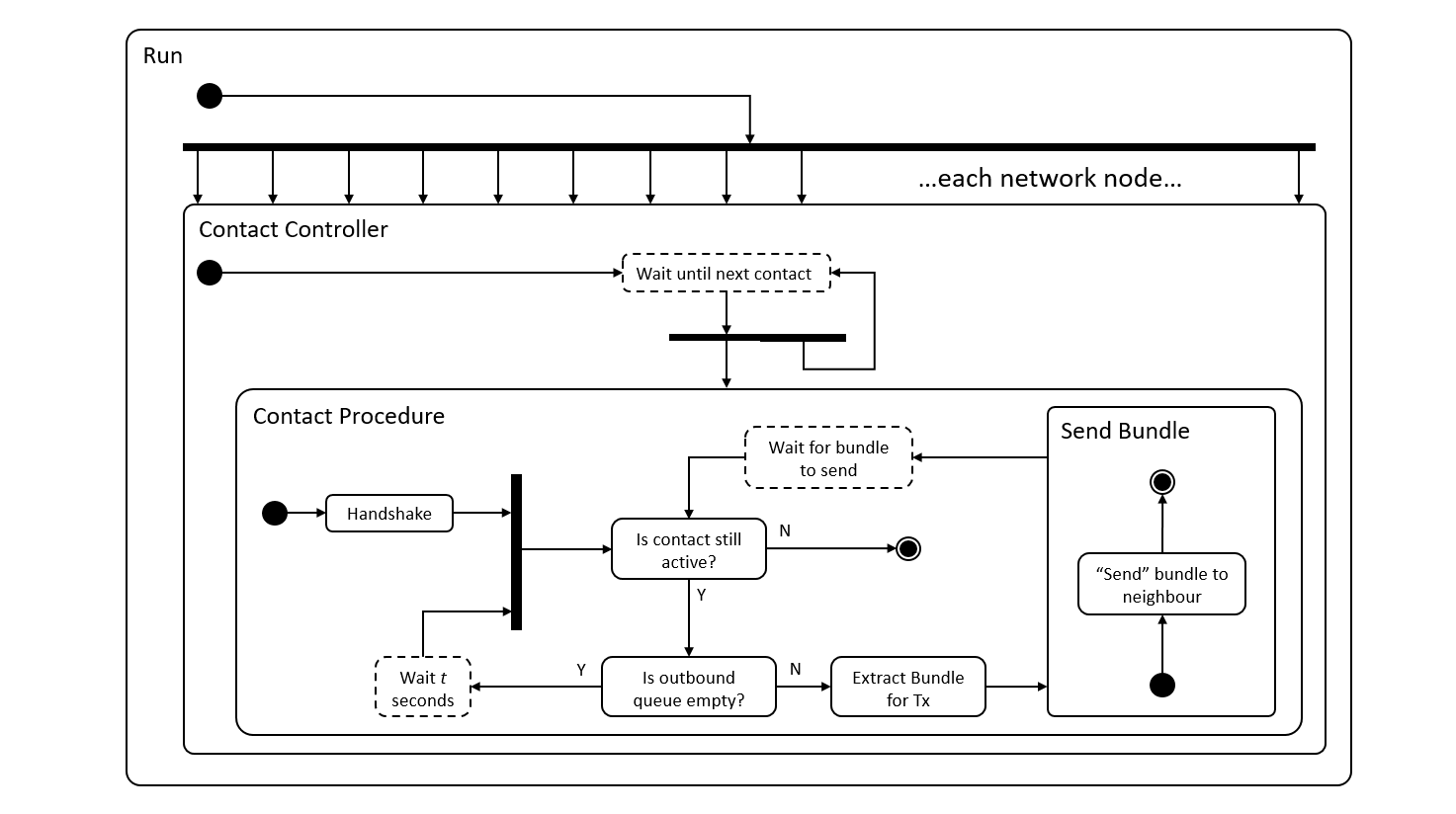

A simplfied representation of the Contact Controller function, which lives on board each node in the network, is presented below. The Contact Controller handles the Contact Procedure when two nodes are communicating, and waits when not. Multiple instances of the Contact Controller may be running at any one time, if deemed feasible on the node, for example if both an inter-satellite and space-ground contact are happening simultaneously. Within the Contact Procedure, the Send Bundle event is triggered if the necessary conditions are met, else a wait time is imposed before again checking the data buffer, or the process is exited.

Installation

To install the required Python dependencies, run:

pip install -r requirements.txt

You will also need to install Microsoft Visual C++ (MSVC) at version 14.0 or greater. Get it with "Microsoft C++ Build Tools".

This software is compatible with Python 3.13.

Executing the model

There are two options for executing the CGS simulation:

1. Single-scenario execution
2. Multiple-scenario execution

Single-scenario

To run a single scenarion, do the following:

1. Navigate into the src directory
2. At the bottom of the main.py file, set the filename variable to be the path location of the JSON file containing the mission definition to be evaluated.
3. Run the main.py file

Some summary analysis of the simulation will be displayed in the console, and a pickled version of the Analytics object saved in the directory /results/single/{filename}

Multi-scenario

Multiple scenarios can be run from a single execution, to provide additional convenience when performing trade-off analyses. The multiple scenarios must be based off of a single input file (JSON), with specific attributes that contribute to the problem space, being defined manually.

Execute the simulations

To run:

1. Open the mainMulty.py file
2. Comment/Uncomment (as appropriate) the values for schemes, uncertainties and congestions. These lists define the possible design options and a full-factorial analysis will be carried out (i.e. every possible combination of entries)
3. Define the base input file to be used for the simulation, in the filename variable
4. Run the mainMulti.py file, which will iterate over each of the combinations and save a Pickle file, per simulation, into the /results/multi directory.
5. If required, manually move the new results files into their own directory

Note that the value for traffic.congestion and traffic.msr get updated automatically during the execution, as defined by the congestions and schemes item, respectively.

To plot the results

It is recommended that the plotting is done either for a set of scheduling schemes at a particular level of uncertainty, or a single scheme at different uncertainties. To set up plotting, in the plotResults.py file:

1. Ensure only one of either the scheme or uncertainty variable (list) has multiple entries, with the other just having a single entry.
2. Update the rsls variable to match the congestions used in the inputs
3. Update the scheme and uncertainty lists to match those defined in the simulation inputs
4. Modify the filename variable to match the path to the results files
5. Run the plotResults.py file
