ExACT: Expression-Aware Adaptive Compilation in Databases

ExACT is an expression-aware adaptive hybrid Execution method for analytical databases. This is the official implementation of the paper "exACT: Expression-Aware Adaptive Compilation in Databases".

Summary

Conventional database compilation execution mostly conduct optimization on the whole SQL query level. ExACT, instead, applies a new strategy to deal with expression-level optimization.

The artical describes several compilation execution strategies to compete in decision accuracy and query-execution performance in the database for OLAP tasks.

The experimental results indicate that:

• PostgreSQL strategy, whose original expert decision-makeing is a well-performed baseline, widely used as a standard to make optimization decisions according to the overall query costs.
• Quartet, a learning-based execution decision model for databases, further incorporates operator information into its end-to-end learning framework for query compilation decisions. The decision accuracy of Quartet approaches is significantly lower compared to PostgreSQL in some cases.

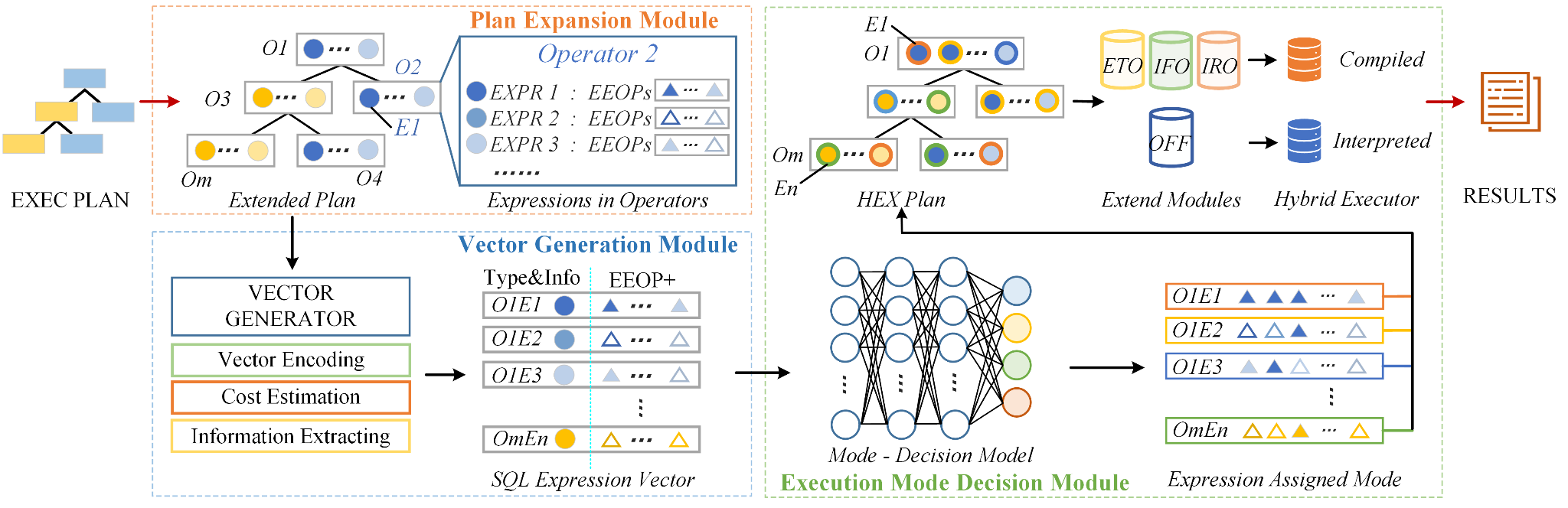

• HEX represents a transformative approach, optimizing in currently the smallest decision unit (expressions) in the database compilation executor:
  • Benchmarking: In comparisons of decision accuracy, ExACT outperformed all the above algorithms across datasets ranging from 0.1GB to 10.0GB.
  • Performance evaluation: HEX demonstrated an average performance improvement of approximately 29% compared to PostgreSQL's expert decision execution mode in TPC-H workload of 1GB to 10GB, with a maximum improvement of around 55%.
  • Generalization ability: Tests on the JOB dataset indicate that HEX exhibits strong generalization capabilities.

Environments

LLVM

This implementation requires the appropriate LLVM version. Use the script Scripts/install_llvm15.sh to download and install LLVM 15.0.7 for PostgreSQL 13.9:

./install_llvm15.sh

PostgreSQL

The modified source codes for PostgreSQL 13.9 has been uploaded in Postgresql-13.9/. Use the script Scripts/install_pg_source.sh to compile and install it. Remember to change the directory in the script according to your own environment.

./install_pg_source.sh

You can then initialize the database cluster and start the PG server in the installation directory:

cd $PG_INSTALL_DIR/bin  # $PG_INSTALL_DIR refers to where PostgreSQL is installed

./initdb -D ../data

./pg_ctl -D ../data start

The modified PostgreSQL added a few configuration parameters as listed in Postgresql-13.9/postgresql.conf. Put it in the PG_DATA directory and change the corresponding configurations for different testing purposes. Every change requires the PG server to be restarted:

cd $PG_INSTALL_DIR/bin

./pg_ctl -D ../data restart

Workloads

We conducted experiments on the workloads of TPC-H and Join-Order-Benchmark (JOB).

The download links are here below:

• TPC-H: TPC Current Specs
• JOB: gregrahn/join-order-benchmark: Join Order Benchmark (JOB)

Baselines

Our experiments compares the HEX method with:

• PostgreSQL: the original expert decision making strategy decides the overall optimization level depending on the total cost of the whole plan tree.
• Quartet: a learning-based strategy which can wisely predict the best overall optimization level depending on the cost of each operator in the plan tree. This method is proposed in the article Quartet: A Query Aware Database Adaptive Compilation Decision System.

Usage

Using the modified PostgreSQL, each query execution can generate related data files in the given directory (in /data/ by default), which can be analyzed using Python scripts and models in DataAnalysis/HEX/. The data files which can be analyzed include:

• report.csv: one line for one statement, including expression count and the related operator.
• jit.csv: one line for one statement, including all the expression ids and their jit levels.
• operator.csv: one line for one operator with different statements seperated with empty lines, including all the operator information.
• time.csv: one line for one statement, including all the time information——generation time, inlining time, optimization time, emission time, compilation time, plan time, execution time.
• expr_eeops.txt: one line for one expression, including all the expression ids and the coresponding EEOPs.

Put the files in DataAnalysis/HEX/Data/, change the directory in Python script and you can analyze the information and generate the coresponding vector file for training models.

For generating the above files, use the configuration file Postgresql-13.9/postgresql.conf to overwrite the original .conf file in PG_DATA and then restart the server:

cp $PG_DATA/postgresql.conf $PG_DATA/postgresql.conf.bak	# $PG_DATA refers to where the database cluster is

mv $PG_ROOT/postgresql.conf $PG_DATA/postgresql.conf    # $PG_ROOT refers to the Postgresql-13.9/ in this repository

cd $PG_INSTALL_DIR/bin

./pg_ctl -D ../data restart

---

As for testing on the workloads, the data and queries for JOB are provided in the repository above.

We provide a few scripts for generating data, importing data, creating databases and tables, as well as executing the generated queries for TPC-H in Workloads/Scripts/TPC-H.

There are three scripts for executing TPC-H queries, serving for different purposes:

• executeN.sh: Execute the given query at the given database for the given times. Require 3 params:
  • X: The number of the SQL file (1-22, e.g., for pgX.sql)
  • N: The number of times to repeat the content
  • database_name: The name of the PostgreSQL database
• executeAllN.sh: Execute all the queries (1-22) at all the databases (100 MB-10 GB by default) for the given times. Require 1 param:
  • N: The number of times to repeat the content
• executeAll.sh: Execute all the queries (1-22) at all the databases (100MB-10GB by default) for the given times. Different execution number for different queries (pre-set in the script). No param required.

For example, If you want to execute every TPC-H query for 3 times in all the databases (100MB-10GB by default) PostgreSQL, you could executed the script like:

cd SCRIPT_PATH/tpch_queires

./executeAllN.sh 3 >> /data/output.txt   # output.txt is for recording the executing process and avoid printing it on terminal.

For testing all the queries for 4n times as said in the article, you can use the script executeN.sh to set the number of execution for every query.

---
