Sportradar Coding Academy Coding Exercise (BE)

Download and Setup

Note: This project uses Docker for containerization. To get Docker, visit Docker Documentation.

1. Clone this repository.

git clone https://github.com/MrPaschenko/sportradar

2. Navigate to the sportradar directory.

cd sportradar

3. Copy .env.example to .env.

cp ./backend/.env.example ./backend/.env

4. Build and start the Docker containers.

docker-compose up --build

5. Use

• Simple frontend .html file is located at ./frontend/index.html. Open it in browser.
• Open API documentation is available at http://localhost:8000/api (Swagger UI).

Tech Stack Overview

I have chosen the following technologies as I have already worked with most of them during my studies in university.

While I did not specifically work with NestJS and Drizzle ORM before, some of my friends recommended them to me previously, so I decided to give them a try for this project.

I mostly followed official documentations of NestJS and Drizzle ORM to solve the task, but I have also used some blog posts, YouTube videos, and LLMs to help me understand certain concepts better.

More about my use of LLMs can be found in the AI_Reflection.txt file.

Backend:

• Node.js
• TypeScript
• NestJS
• Drizzle ORM

Database:

• PostgreSQL

Frontend:

• HTML
• JavaScript

Containerization:

• Docker

Development Tools:

• JetBrains WebStorm
• RapidAPI
• TablePlus
• dbdiagram.io

Database Modeling Overview

To store sport events, I have identified the following entities:

• Events: Main table to store sports events
  • id of type uuid: Primary key
  • start_time of type time: Time when the event starts
  • start_date of type date: Date when the event starts
  • _sport_id of type uuid: Foreign key referencing Sports table
  • _home_team_id of type uuid: Foreign key referencing Teams table
  • _guest_team_id of type uuid: Foreign key referencing Teams table
  • _venue_id of type uuid: Foreign key referencing Venues table
  • status of type smallint: Status of the event
    • 0: Scheduled
    • 1: In Progress
    • 2: Completed
    • 3: Canceled
  • home_score of type int: Score of the home team
  • guest_score of type int: Score of the guest team
• Sports: Table to store sports information
  • id of type uuid: Primary key
  • name of type text: Name of the sport
  • description of type text: Description of the sport
• Venues: Table to store venues information
  • id of type uuid: Primary key
  • name of type text: Name of the venue
  • city of type text: City where the venue is located
  • country of type text: Country where the venue is located
  • longitude of type float: Longitude of the venue
  • latitude of type float: Latitude of the venue
  • website_url of type text: Website URL of the venue
• Teams: Table to store teams information
  • id of type uuid: Primary key
  • name of type text: Name of the team
  • short_name of type text: Short name of the team
  • city of type text: City where the team is based
  • country of type text: Country where the team is based
  • _sport_id of type uuid: Foreign key referencing Sports table
  • website_url of type text: Website URL of the team
  • logo_url of type text: Logo URL of the team

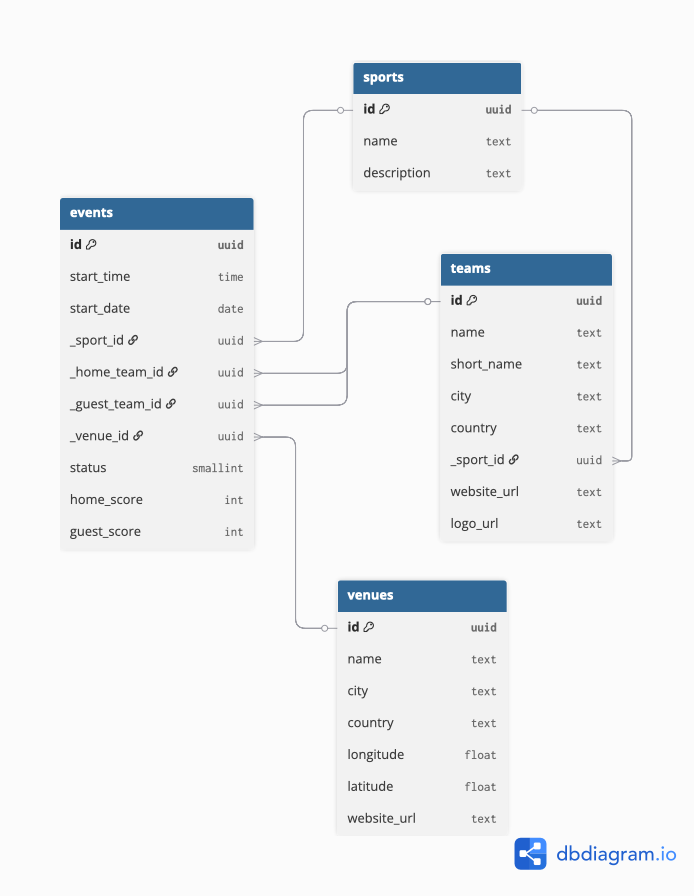

Entity-Relationship Diagram (ERD)

I have created an ERD that includes all the tables, their fields, and relationships. ERD also follows the third normal form of database normalization.
