import Code from 'mdx-code'; import { comic } from "mdx-deck/themes";

export const theme = { ...comic, colors: { ...comic.color, background: "white", }, };

Async Javascript

Event loop, Micro queue, Threads... what?

Javascript

Javascript

Single threaded

The Javascript engine can process one statement at a time

Single threaded

Don't worry about the concurrency issues

Can’t perform long operations such as network access without blocking the main thread

Asynchronous code

  • callbacks
  • promises
  • async/await

But first...

How Does Synchronous Javascript Work?

Example

const second = () => {
  console.log('Hello there!');
}

const first = () => {
  console.log('Hi there!');
  second();
  console.log('The End');
}

first();

Execution context

Call stack

Execution context

An abstract concept of an environment where the JavaScript code is evaluated and executed.

Whenever any code is run in JavaScript, it’s run inside an execution context

Call stack

A LIFO (Last in, First out) structure, which is used to store all the execution context created during the code execution

JavaScript has a single call stack because it’s a single threaded programming language

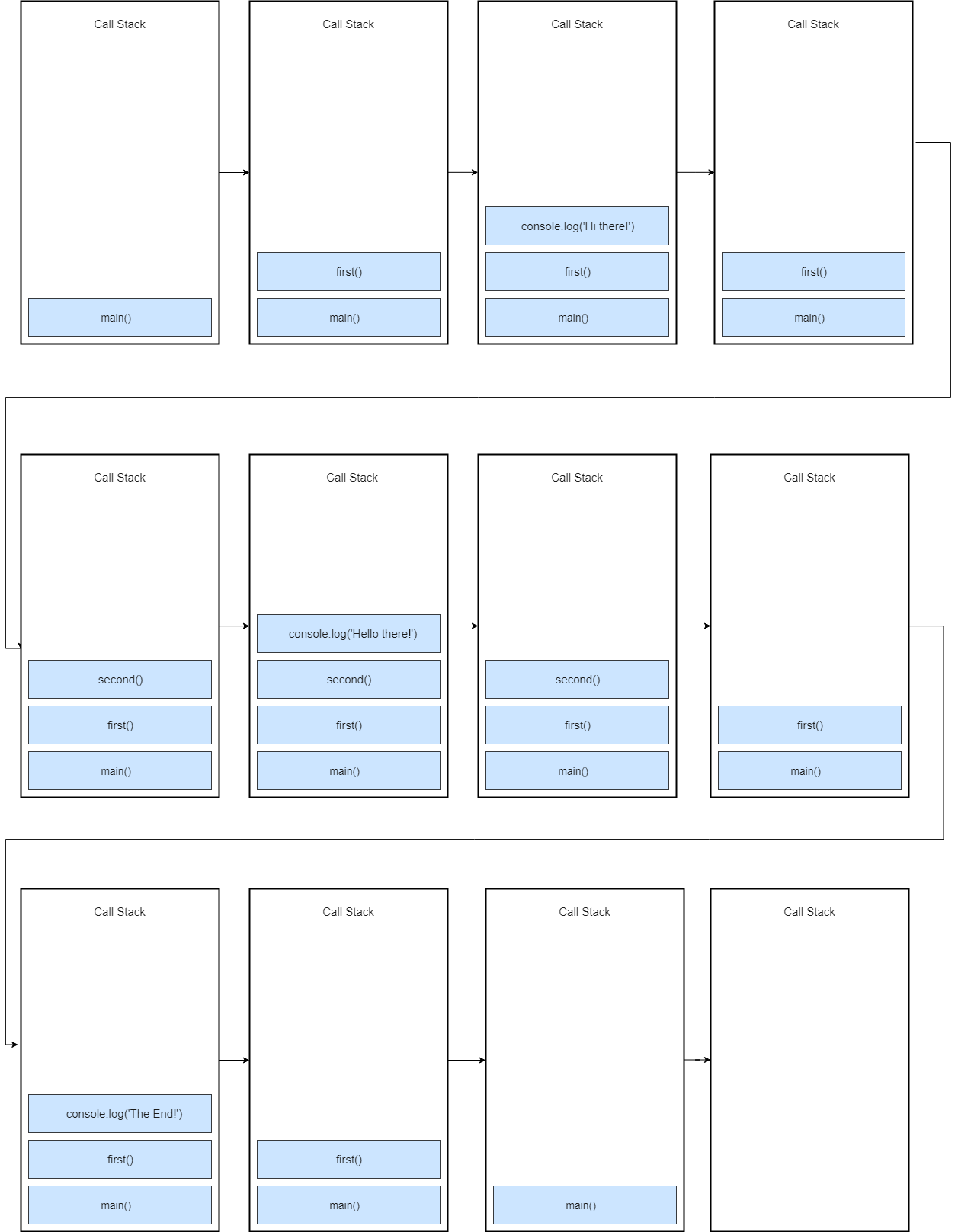

Example

const second = () => {
  console.log('Hello there!');
}

const first = () => {
  console.log('Hi there!');
  second();
  console.log('The End');
}

first();


first();


const first = () => {
  console.log('Hi there!');
  second();
  console.log('The End');
}


const second = () => {
  console.log('Hello there!');
}


const first = () => {
  console.log('Hi there!');
  second();
  console.log('The End');
}


const first = () => {
  console.log('Hi there!');
  second();
  console.log('The End');
}

And now...

How Does Asynchronous JavaScript Work?

Example

const processImage = (image) => {
  /**
   * doing some operations on image
   **/
  console.log('Image processed');
}

const networkRequest = (url) => {
  /**
   * requesting network resource
   **/
  return 'someData';
}

const greeting = () => {
  console.log('Hello World');
}

processImage('logo.jpg');
networkRequest('www.somerandomurl.com');
greeting();

So what’s the solution?

Callbacks

const networkRequest = () => {
  setTimeout(() => {
      console.log('Async Code');
    }, 2000);
};

console.log('Hello World');
networkRequest();

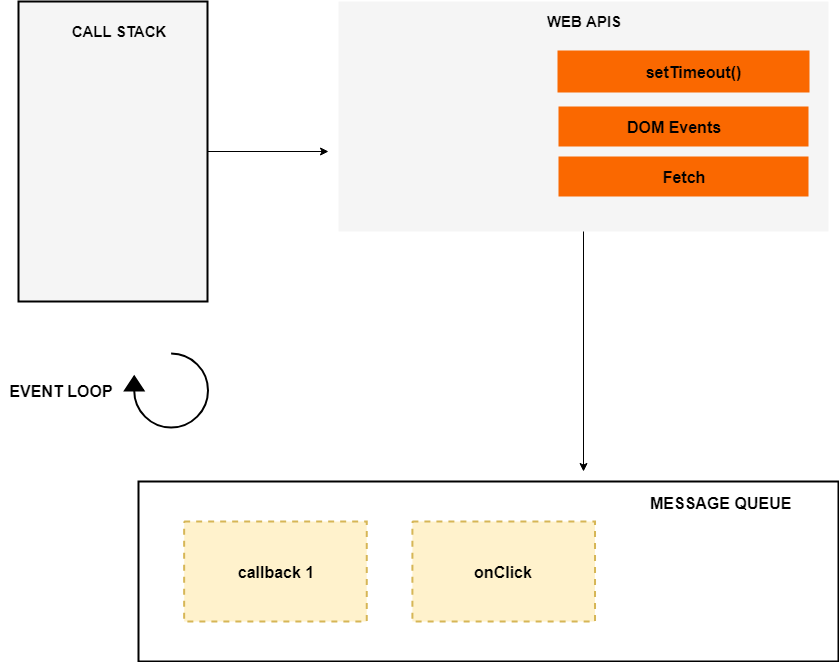

*The event loop, the web APIs and the message queue are not part of the JavaScript engine, it’s a part of browser’s JavaScript runtime environment

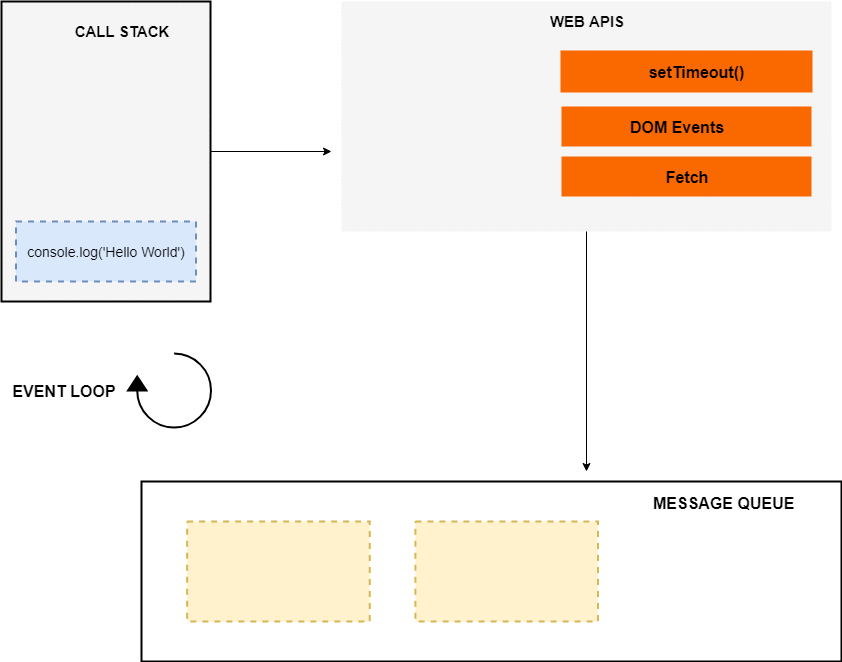

Async example

const networkRequest = () => {
  setTimeout(() => {
    console.log('Async Code');
  }, 2000);
};

console.log('Hello World');
networkRequest();
console.log('The End');

Event loop

DOM events

Event loop

The job of the Event loop is to look into the call stack and determine if the call stack is empty or not

If the call stack is empty, it looks into the message queue to see if there’s any pending callback waiting to be executed

DOM events

The event listener sits in the web APIs environment waiting for a certain event to happen, and when that event happens, then the callback function is placed in the message queue

Event listener example

document.querySelector('.btn').addEventListener('click',(event) => {
  console.log('Button Clicked');
});

One more thing...

ES6 Micro-Task queue

Micro-Task queue

ES6 introduced the concept of micro-task queue which is used by Promises in JavaScript

The difference is that the micro queue has a higher priority than the message queue

Micro queue example

console.log('Script start');

setTimeout(() => {
  console.log('setTimeout');
}, 0);

new Promise((resolve, reject) => {
  resolve('Promise resolved');
})
  .then(res => console.log(res))
  .catch(err => console.log(err));

console.log('Script End');

Micro queue example

console.log('Script start');

setTimeout(() => {
  console.log('setTimeout 1');
}, 0);

setTimeout(() => {
  console.log('setTimeout 2');
}, 0);

new Promise((resolve, reject) => {
  resolve('Promise 1 resolved');
})
  .then(res => console.log(res))
  .catch(err => console.log(err));

new Promise((resolve, reject) => {
  resolve('Promise 2 resolved');
})
  .then(res => console.log(res))
  .catch(err => console.log(err));

console.log('Script End');

Micro queue example

console.log('Script start');

setTimeout(() => {
  console.log('setTimeout');
}, 0);

new Promise((resolve, reject) => {
  resolve('Promise 1 resolved');
})
  .then(res => console.log(res));
    new Promise((resolve, reject) => {
      resolve('Promise 2 resolved');
    })
      .then(res => {
        console.log(res);
        return new Promise((resolve, reject) => {
          resolve('Promise 3 resolved');
        })
})
  .then(res => console.log(res));

console.log('Script End');

*The event loop will first empty the micro queue before executing any callback in the message queue

Conclusions

  • How asynchronous Javascript works
  • Call stack
  • Event loop
  • Message queue
  • Micro task queue

Thank you for your time!
